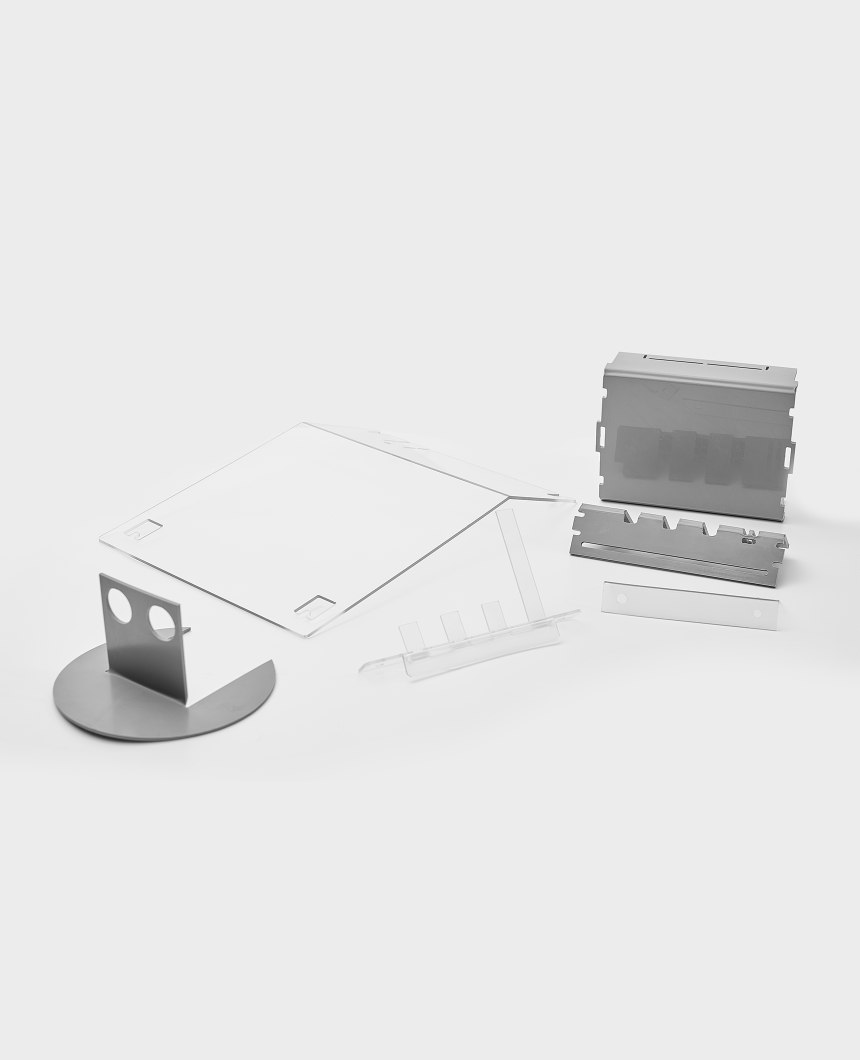

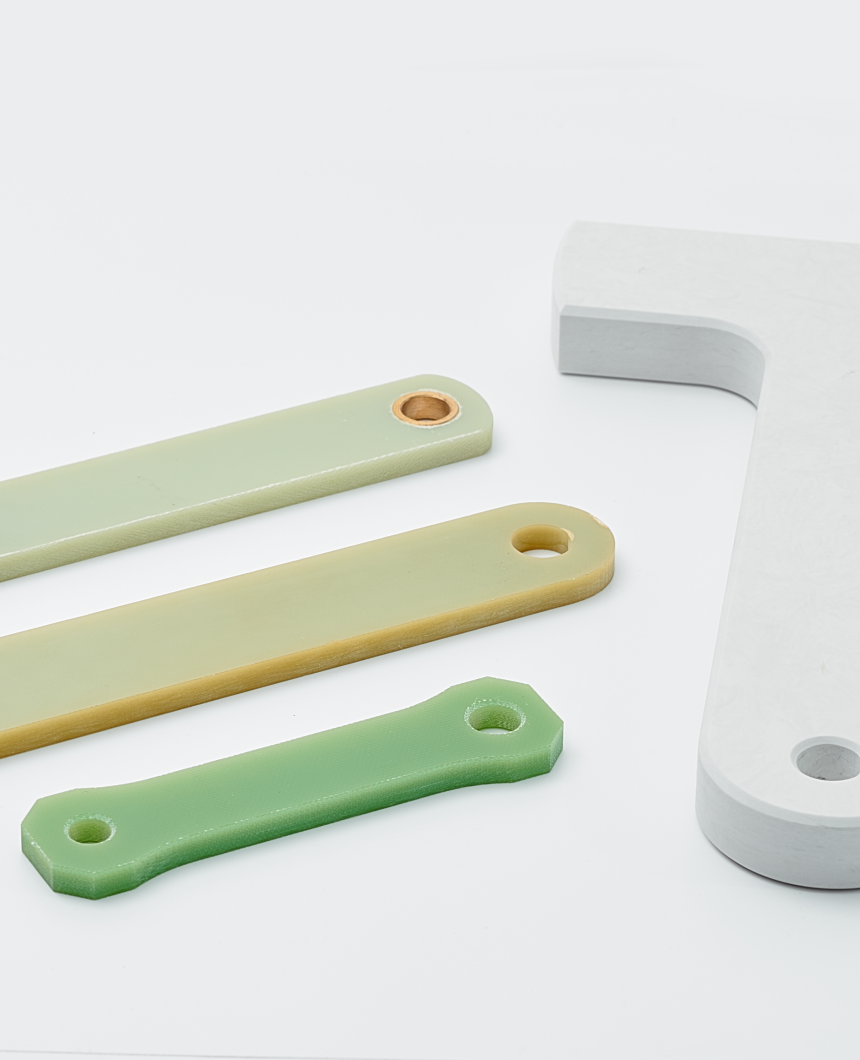

Electric Insulation Materials

Features and Advantage

⋅ Excellent electrical insulation properties.
⋅ High mechanical strength, yet lightweight and rigidity.
⋅ Resistance to corrosion, heat, flame, smoke and toxins.
⋅ Abrasion, impact and arc resistance.
⋅​​​​​​​ ​​​​​​​Excellent property retention and dimensional stability at
   elevated temperatures.
⋅​​​​​​​ ​​​​​​​Durability.
⋅​​​​​​​ ​​​​​​​Parts made with composite materials are quieter and longer lasting than
   metal parts.
⋅​​​​​​​ ​​​​​​​Regarding the composite materials, reinforcing substrates such as
   woven [cotton] canvas fabric, woven [cotton] linen fabric,
   non-woven (saturating] paper; woven (fiberglass] glass fabric,
   graphite & kevlar® are used.
⋅​​​​​​​ ​​​​​​​Regarding the composite materials, types of laminated thermoset resin
   binders include epoxy, melamine, silicone, polyester, phenolics,
   polyim ide & polyester.
⋅​​​​​​​ ​​​​​​​Can be punched, drilled, machined.

Typical Electrical Insulation Materials

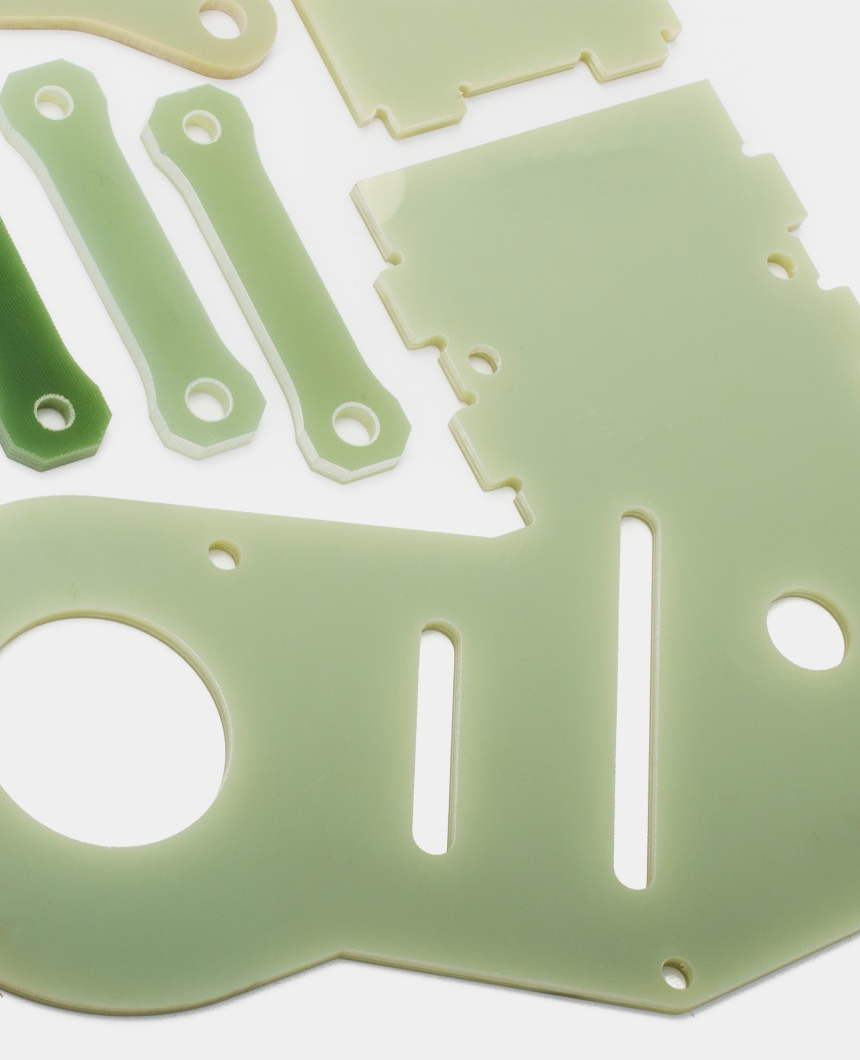

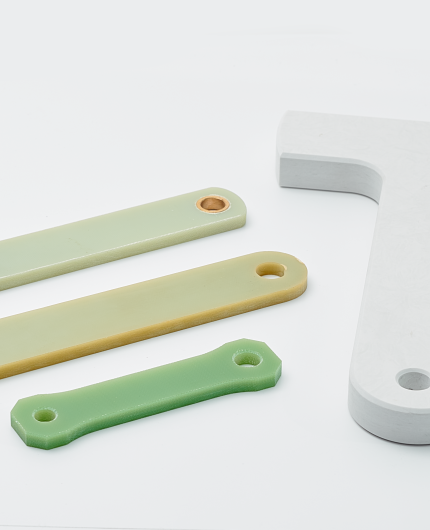

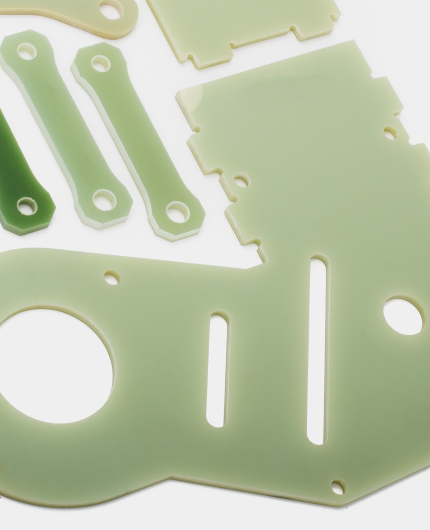

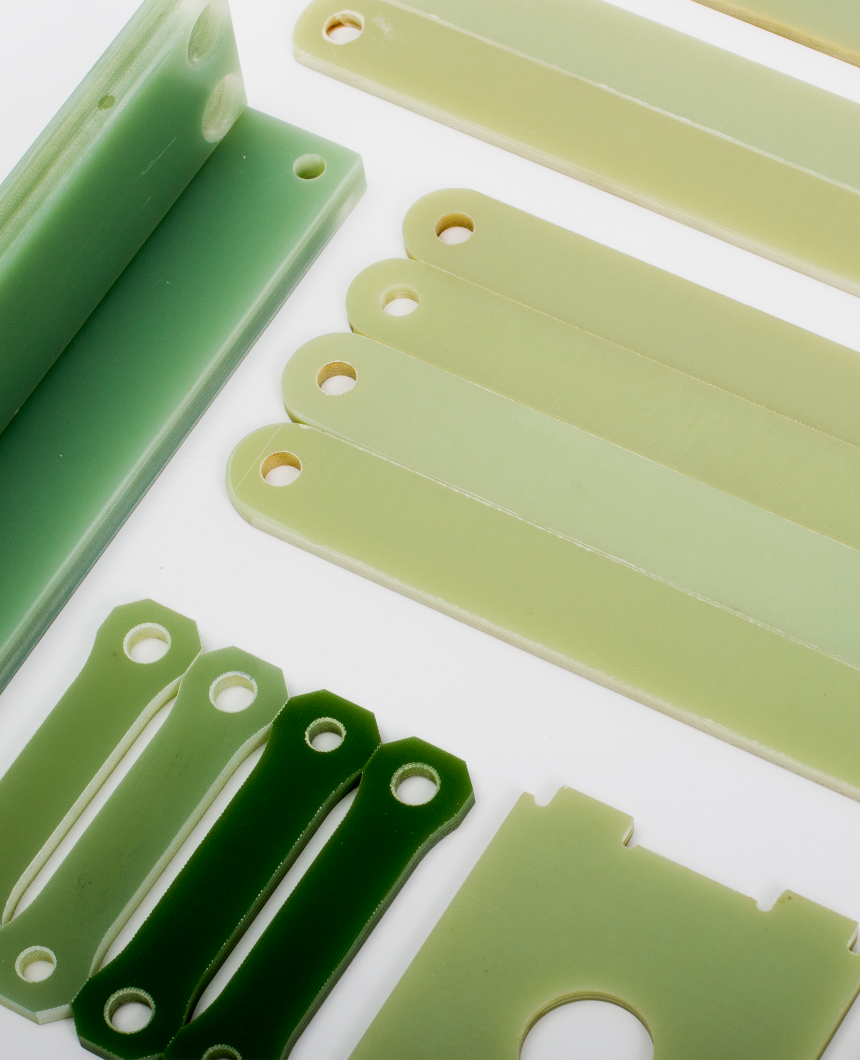

Glass Reinforced Epoxy: G10 (EP GC 201) / FR4 (EP GC 202) G11 [EP GC 203) / FR5 (EP GC 204)
Glass Reinforced Melamine: G5 (MF GC 201) / G9
Glass Reinforced Silicone: G7 (SI GC 202)
Glass Reinforced Polyester: GPO1 (UPGM 201) / GPO 2 (UPGM 201) GPO 3 (UPGM 203)
Cellulose Paper Reinforced Phenolic Resin: H P2061 (PF CP 201) HP2061,5 (PF CP 202) / Hp 2064 (PF CP 202) / Hp 2061.6 (PF CP 203)

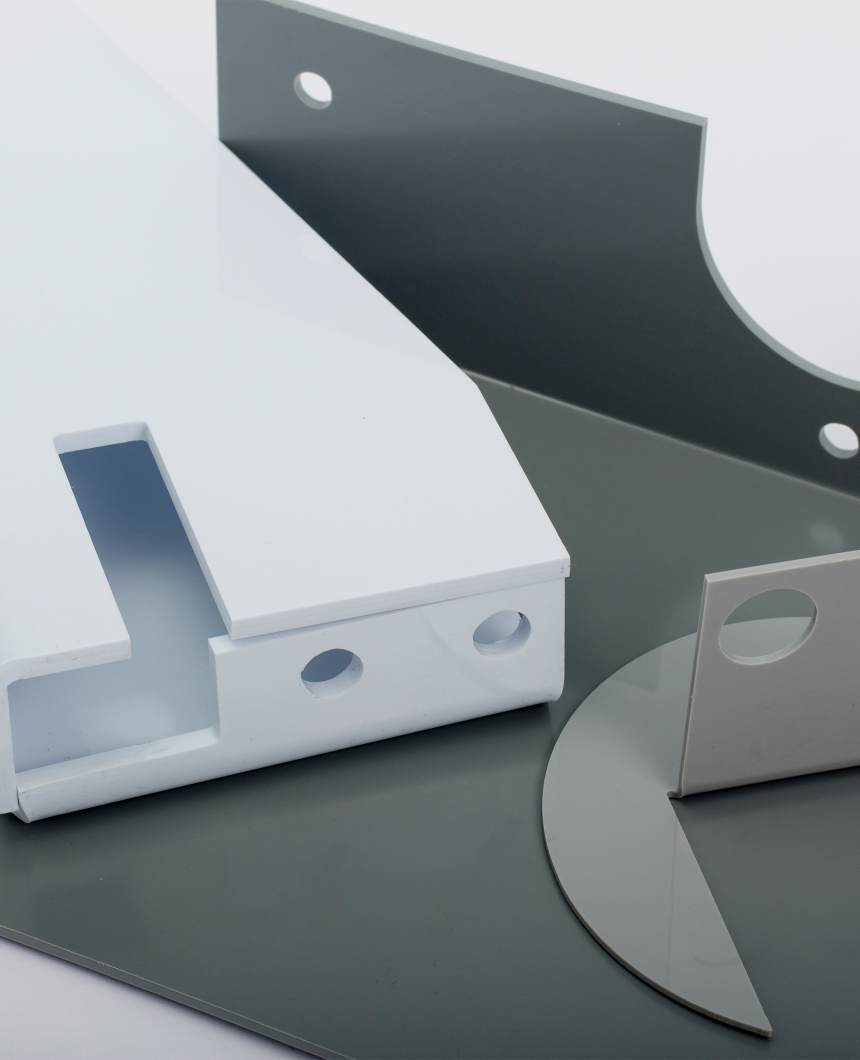

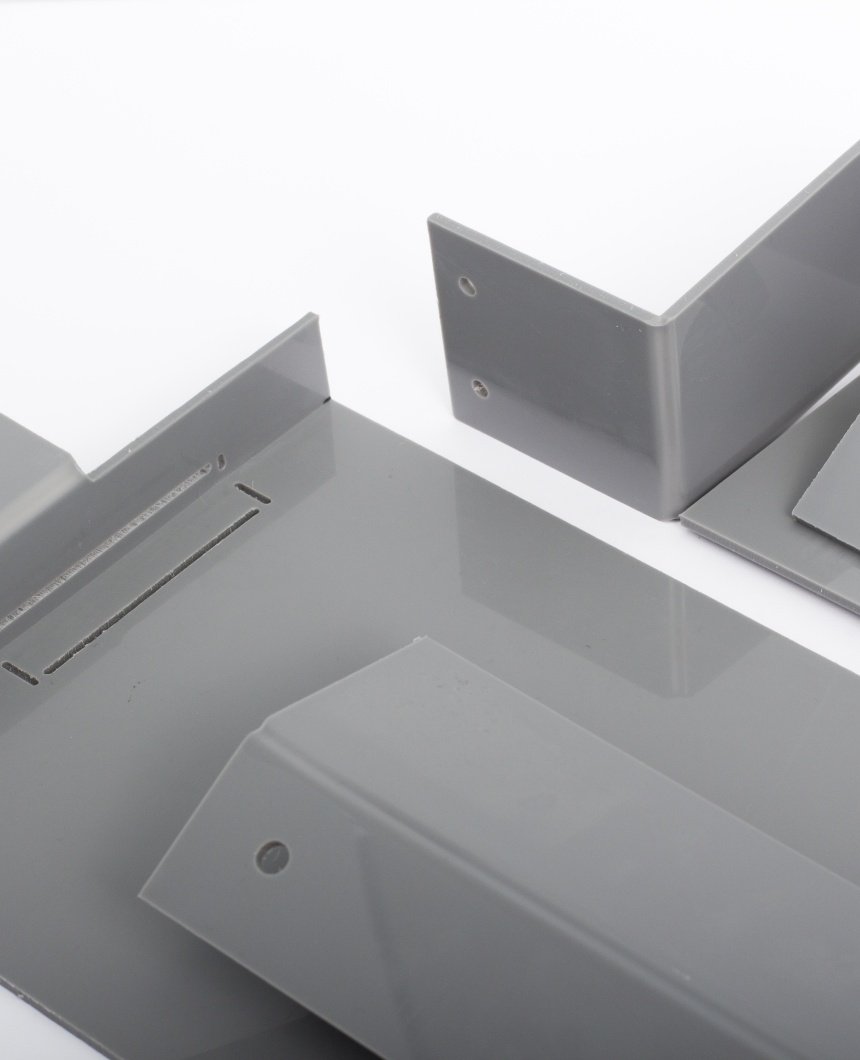

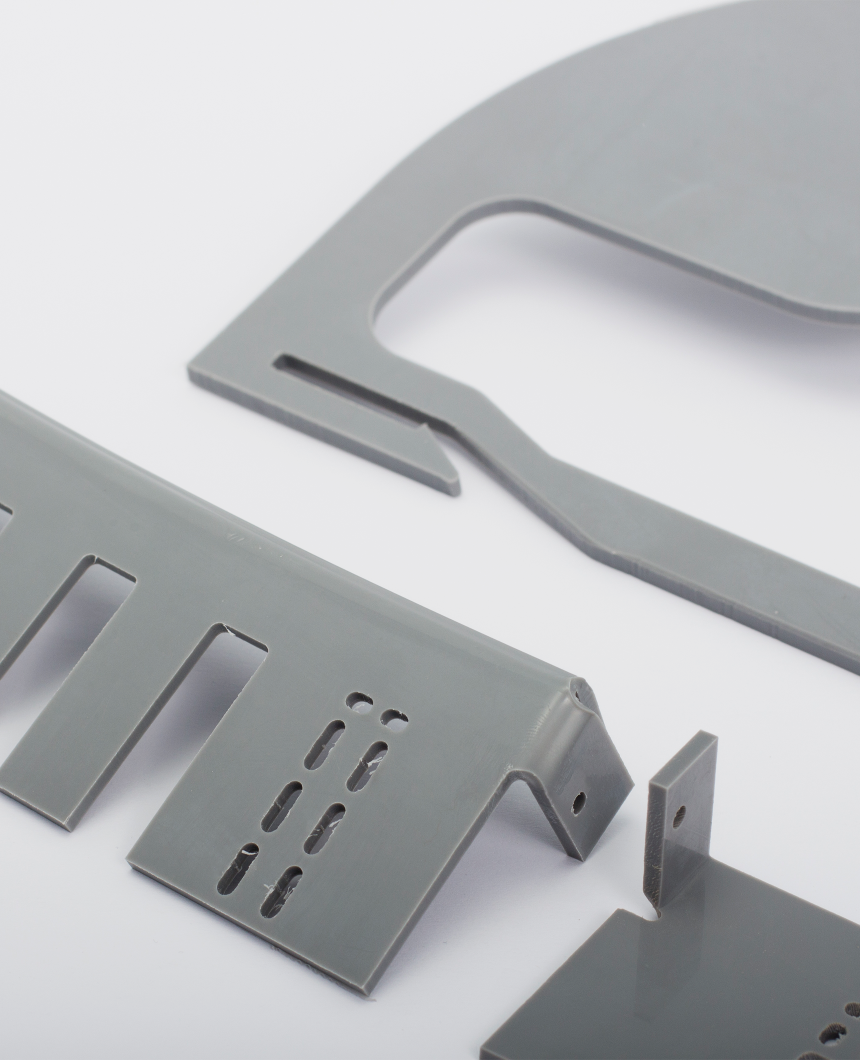

PVC (Polyvinylchloride)
PP (Polypropylene)

Typical Electrical insulation Materials Applications

Electric and energy sector like low medium voltage switchgears, circuit breakers, Power distribution units, high-voltage transformer
Insulation systems, phase and end barriers, bus bar supports, control circuits, transformers washers, etc.
Aerospace and aviation market like aircrafts structural components, cockpit and avionics components, seals and gaskets
Automotive market like sensor and control module components, fuel system components, motion transfer components and structural components
Construction market like panels
Medical equipments like magnetic resonance, bone joints, bed plate, etc.
Wind power industry like frequency conversion cabinets
Photovoltaic industry like inverter cabinet
